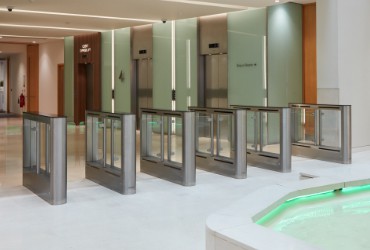

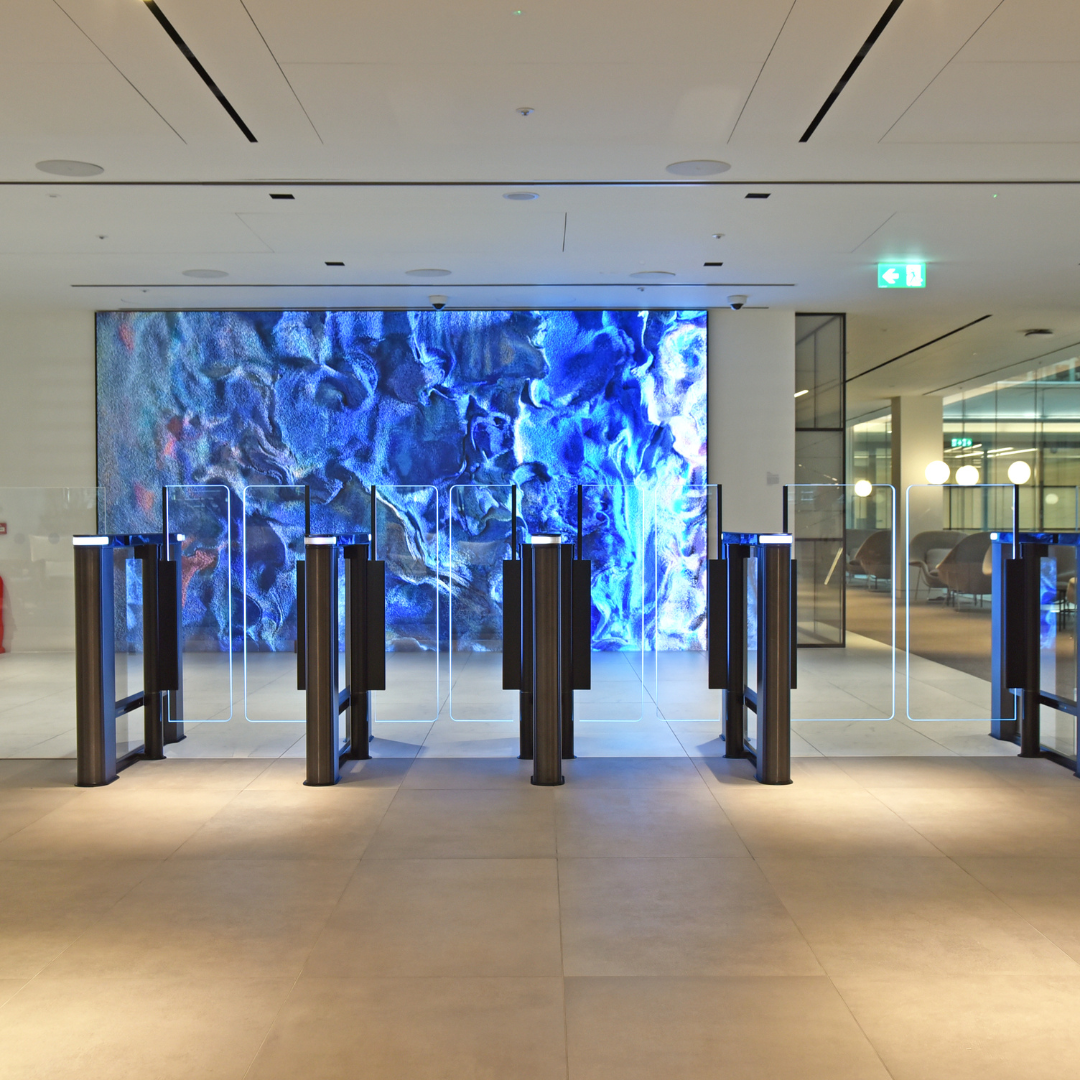

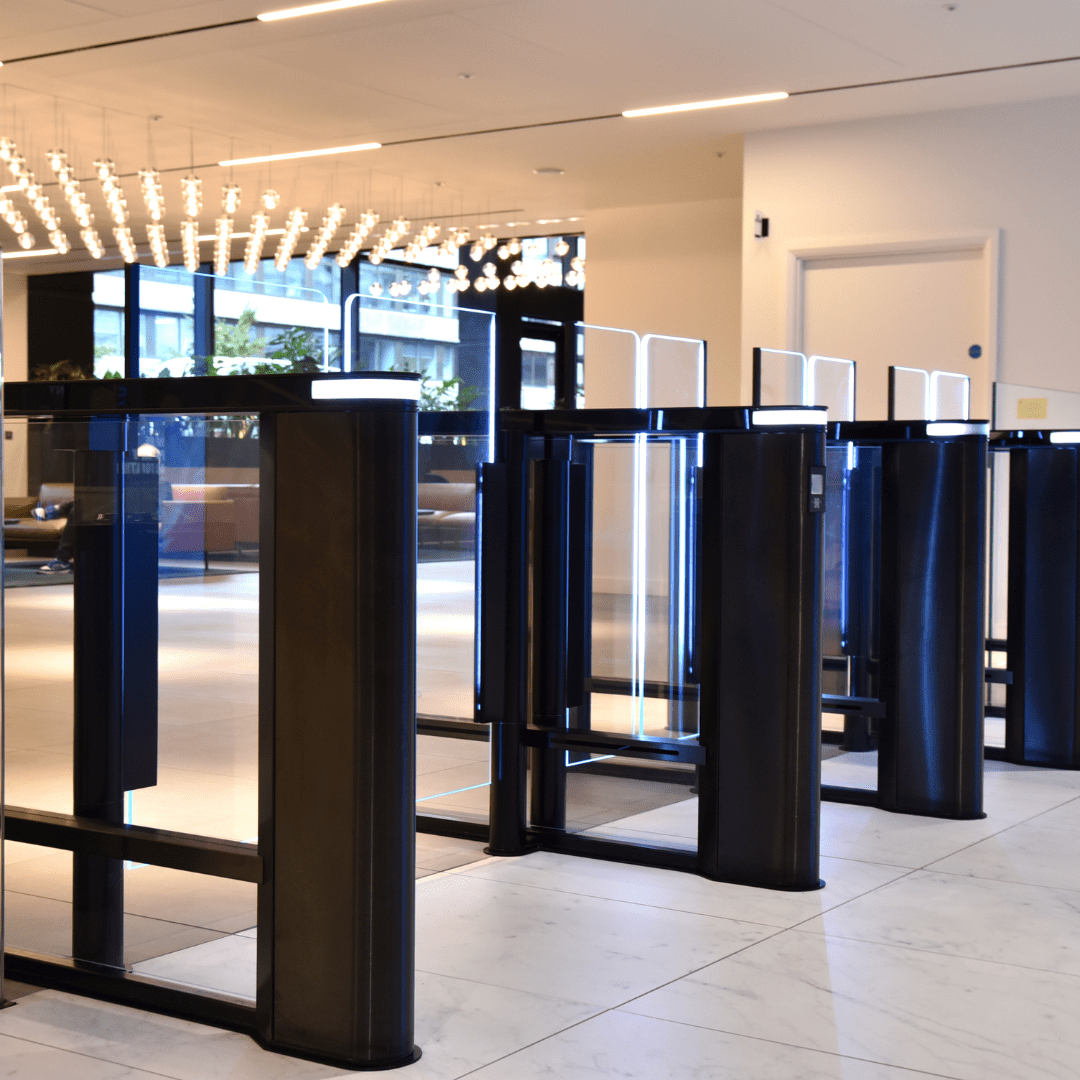

The EasyGate Elite is the latest in Speed Gate innovation combining high security and style in an elegant slimline design. The modern, minimal brushed stainless steel construction makes the EasyGate Elite a focal point for any reception or office environment. The EasyGate Elite is now available with a shorter cabinet length for small footprint installations.
Main Features
- Minimal sleek construction
- Elegant slim cabinet design: 120mm width
- Designed to cope with a high level of throughput
- High Glass wings available for increased security*
*Optional feature
Dimensions
- Cabinet height: 990mm
- Cabinet length: 1070/1400mm
- Cabinet width: 120mm
- Barrier height: 990 - 1800mm
Number of Wings
- 1 Wing / 2 Wings
Type
- Swing Gate
Barrier
- Glass Wing (10mm, tempered)
Number of Sensors
- 30 pairs
Passage Width
1 wing- Standard width: 550mm
- Max passage width: 600mm
- Max passage width:
- 1100mm (For glass height up to 1400mm)
- 1000mm (For glass height up to 1600mm)
- 920mm (For glass height up to 1800mm)
Base and Housing
- Brushed Stainless Steel
Top Lid
- Black Glass Panel
Power Supply
- 13.8V DC/ 24V AC/ 230V AC
Communication Interface
- RS-485/ USB/ Ethernet
Tailgating and Cross Over Detection
- Yes
Climb Over Detection
- Yes - electronic detection
Range of Operating Temperature
- +10°C to +50°C
- -25°C to +50°C with heating module
Operating Environment
- Indoor
Emergency Mode
- Open manually or automatically (with optional power back-up)
MCBF
- 5 million cycles (Based on recommended maintenance schedule)
Custom Top Lid
Corian
Stone

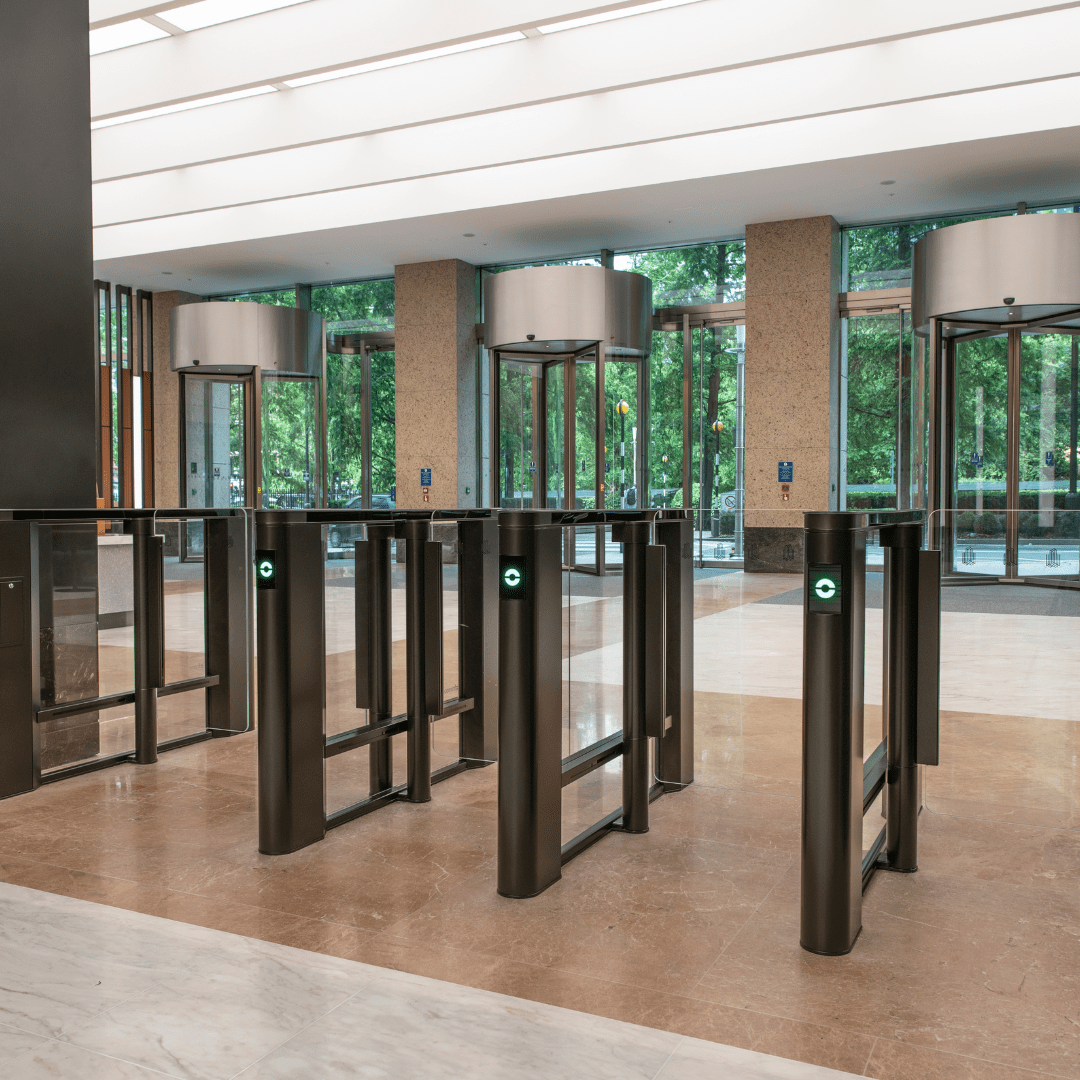

WoodCustom Base Housing
RAL powder coated steel
Black/ Gold/ Bronze Stainless SteelMeesons offer a wide variety of finishes and materials, view examples of our work for further inspiration.
Optional Accessories
- RFID reader bracket
- Edge light
- Wing light
- Hinge capping
- EasyTouch/ Touch panel/ TMON control panel
- Integrated visitor card collector
- EasyScan
- Integrated 3rd party terminals – ticket readers/ biometrics etc
- WAV player
- RF remote control
- Low iron glass wings
- Bespoke top lid
- Speed Gate plinth
- Post mounted infill barriers
- Cantilever glass barriers
- Glass manifestation
- Solid infill panels
- LiftCall Mini
- Speed Gate sub frame
